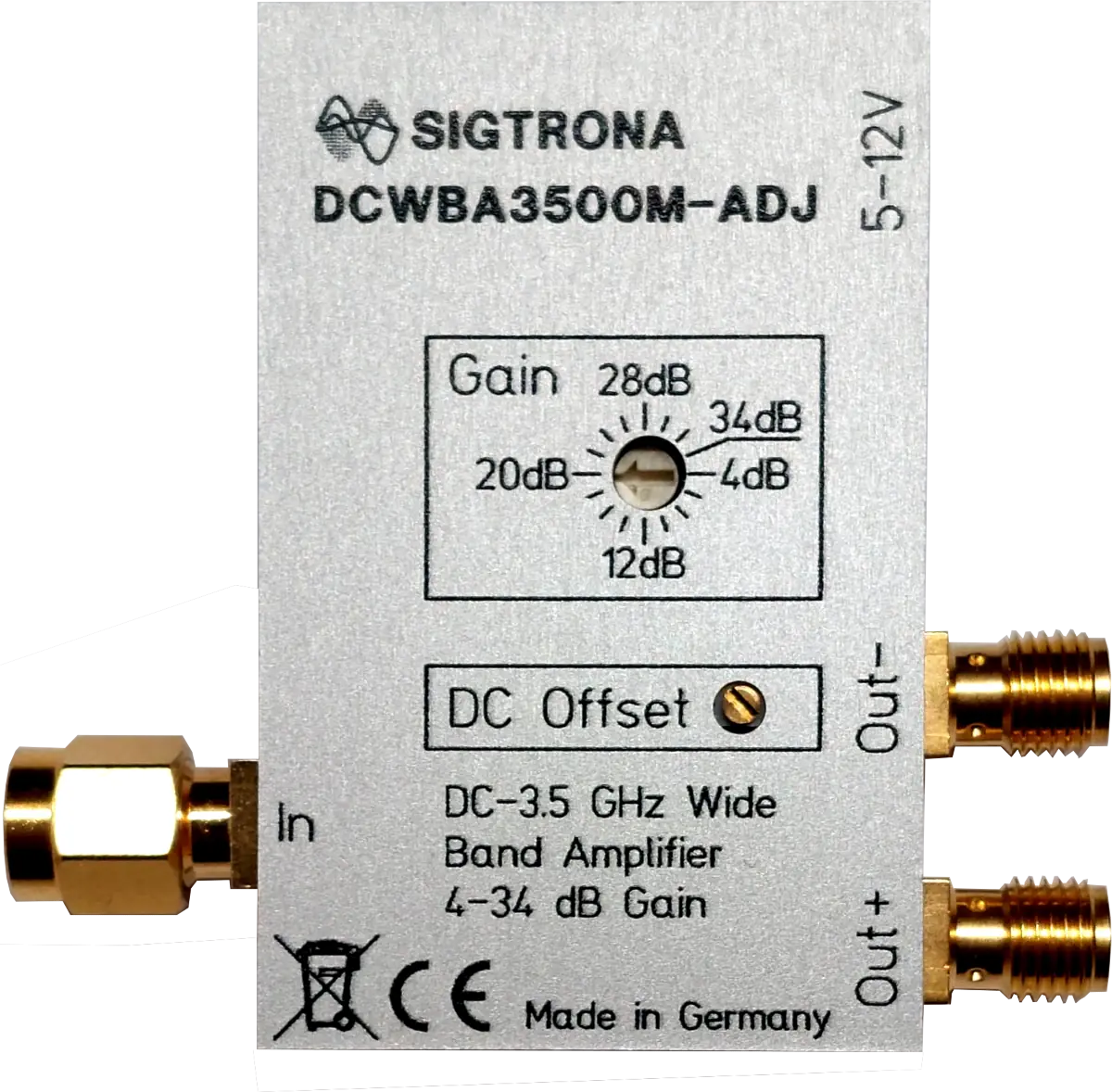

DCWBA3500M-ADJ
Digitally Adjustable DC-Coupled Wideband Amplifier
DC to 3.5 GHz broadband amplifier with adjustable gain and differential outputs for PMT, ATE, and signal conditioning
The Sigtrona DCWBA3500M-ADJ is a wideband, DC-coupled amplifier with digitally adjustable gain. Its wide gain range of +4 to +34 dB, combined with an adjustable DC output offset, makes it suitable for a broad range of applications. The device features differential outputs, providing both inverted and non-inverted versions of the signal. Power is supplied via a USB-C connector, and the amplifier accepts input voltages from 5 to 12 V, enabling straightforward integration into OEM systems.

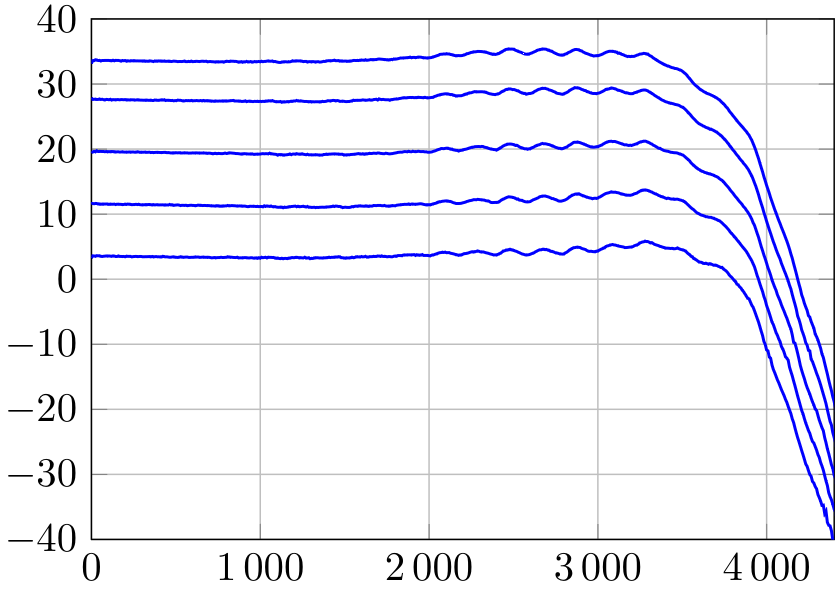

| Gain: | Digitally adjustable from +4 to +34 dB in 2 dB steps |
| Coupling: | DC-coupled input and output |
| Bandwidth: | Wideband 3.5 GHz for high-speed signals |
| Power Supply: | USB-C, 5–12 V for flexible integration |
| DC Offset: | Adjustable ±1 V for baseline tuning |
| Outputs: | Complementary differential outputs (Out+ / Out−) |
| Impedance: | Standard 50 Ω input and output |
| Form Factor: | Compact 32 × 50 × 14 mm, 46 g |
Choose the DCWBA3500M-ADJ variant that fits your setup. All models feature differential outputs and USB-C power.
Female SMA input connector
Female SMA output connectors
Male SMA input connector
Female SMA output connectors
